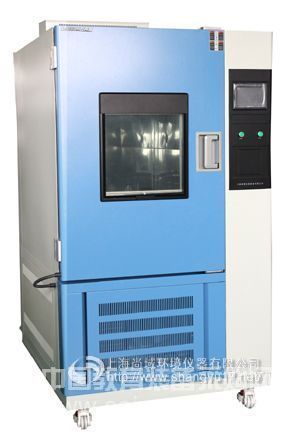

The entire enclosure of the ozone aging test box is made of 1.2mm cold plate electrostatically sprayed by CNC machine tools, the color is beige; the material of the test chamber wall is SUS304 advanced anti-corrosion stainless steel plate, the structure design is reasonable, the manufacturing process is excellent, and the internal and external appearance Beautiful. According to the temperature requirements of the laboratory, the thickness of the insulation layer is designed to be 100mm. The insulation material between the inner box and the outer box is high-quality ultra-fine glass fiber insulation cotton, which plays a good role in cold or hot insulation.
Imported sealing material and unique silicone sealing structure are adopted between the door and the door frame of the ozone aging test box, and the sealing performance is good. The door of the box is equipped with a conductive glass insulating glass observation window, the size of the observation window is 200 × 300mm. Observe that the glass has an electronic heater to prevent condensation and defrost.
The air channel in the ozone aging test box adopts a double circulation system, which is composed of a long-axis axial fan, a stainless steel multi-wing centrifugal wind wheel and a circulating air channel. And the cooling ability has greatly improved the temperature uniformity of the test chamber. The heater uses stainless steel 316LI fin-type special electric heating tube; the box is also equipped with four universal wheels to facilitate the movement of the box.
